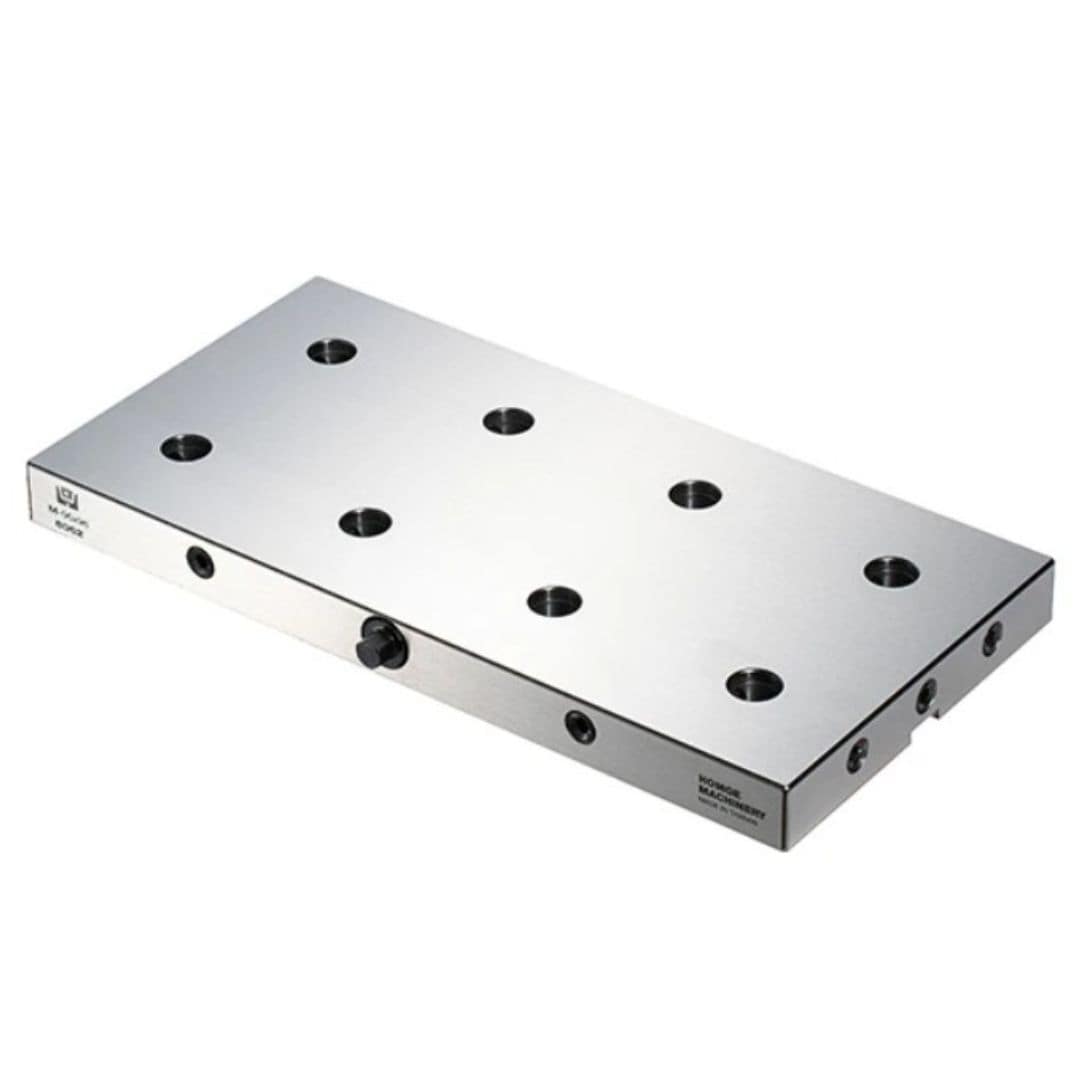

The RECTANGULAR MULTI PLATE / GRID PLATE is a high-precision modular work holding system designed for mounting multiple 5-axis vises in a single machining process. This advanced multi-clamping solution is compatible with 3-axis, 4-axis, and 5-axis machines, as well as indexing plates, making it ideal for a wide range of industrial machining applications. Additionally, it can be installed on tooling tombstones and other custom fixtures, providing maximum flexibility for manufacturers seeking to optimize their CNC work holding setup. With superior positioning accuracy, it ensures repeatable, high-precision clamping, minimizes work piece misalignment, and enhances overall machining performance.
Featuring a modular design, the RECTANGULAR MULTI PLATE / GRID PLATE allows for quick assembly and seamless customization, adapting to different production needs with ease. This scalable work-holding system not only optimizes space utilization but also enhances setup efficiency by enabling direct work piece clamping, significantly reducing preparation time. Whether used for milling, drilling, or cutting operations, this grid plate offers a stable and reliable clamping mechanism that ensures consistent machining results across various industrial applications. By eliminating complex setups, it simplifies work piece positioning and enhances workflow efficiency, making it an excellent choice for precision machining in industries such as aerospace, automotive, and heavy machinery manufacturing.
Designed for ease of use and minimal maintenance, the RECTANGULAR MULTI PLATE / GRID PLATE is a cost-effective and high-performance solution for manufacturers aiming to improve work holding efficiency and reduce downtime. Its robust construction ensures long-term durability, even in demanding CNC machining environments. As a versatile multi-clamping platform, it enhances production scalability, allowing manufacturers to streamline operations and achieve higher output with minimal adjustments.
This multi-plate grid system is an essential addition to modern CNC machining environments, providing efficiency, precision, and adaptability for even the most complex manufacturing processes. By integrating this advanced work-holding solution, manufacturers can maximize productivity, minimize material waste, and achieve superior machining accuracy with ease.
1. Modular design: Can be quickly assembled and adapted to different production needs, improving flexibility and scalability.
2. Compatible with 3-axis, 4-axis, and 5-axis machines and indexing plates, it is suitable for a wide range of processing applications and enhances production capacity.
3. High-precision positioning ensures accurate clamping of workpieces
4. Directly clamp the workpiece: Simplify the workpiece clamping process, reduce preparation time, and improve work efficiency.
5. Easy Operation and Maintenance
