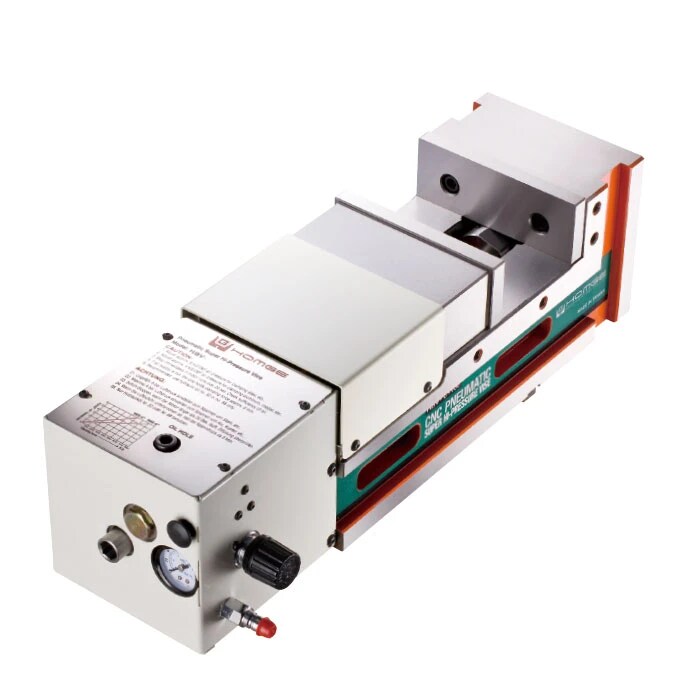

The PNEUMATIC SUPER HI-PRESSURE VISE is a versatile and powerful workholding solution designed to handle the most demanding machining tasks. With a clamping force range of 0-8000KG, it offers the flexibility to securely hold a wide variety of workpieces, from smaller components to larger, more complex shapes. The pneumatic actuation system allows for smooth and consistent clamping, ensuring high precision and reliable performance in both high-volume and complex manufacturing processes. This high clamping force ensures that workpieces stay firmly in place during machining operations, minimizing the risk of movement and ensuring consistent accuracy. Its robust design makes it ideal for industries that require reliable clamping solutions, such as automotive, aerospace, and metalworking. By offering adjustable clamping forces, it is well-suited for a wide range of materials, enhancing its versatility and making it an excellent choice for diverse manufacturing environments.
The Pressure Adjusting Knob is a standout feature of the PNEUMATIC SUPER HI-PRESSURE VISE, enabling users to quickly adjust the clamping force for different workpieces or materials. This feature significantly speeds up operations, reducing setup times and enhancing overall productivity. The adjustable clamping force (0-8000KG) ensures that users can tailor the vise's performance to the material's characteristics, ensuring optimal clamping without over-pressurizing or damaging delicate materials. This adjustability also enhances the flexibility of the vise, making it adaptable to a wide range of machining requirements. Whether clamping soft or hard materials, the vise can be fine-tuned to deliver the right amount of force, ensuring both safety and accuracy throughout the machining process.
The safety range of the PNEUMATIC SUPER HI-PRESSURE VISE is 8mm, ensuring that even under high-pressure conditions, the workpiece is held securely and safely. This feature is crucial for minimizing the risk of accidents and providing peace of mind to operators, knowing that the vise will operate within a safe range at all times. The combination of high clamping force, adjustable settings, and built-in safety features makes this vise an indispensable tool for manufacturers seeking precision, efficiency, and safety in their machining operations.
1. The new Patented PNEUMATIC SYSTEM is designed to enhance clamping force of 0-8000kg and can be adjusted depending on the material of work-piece.
2. Vise body is made of Ductile Iron above FCD 60 grade for high precision and durability. With a force of 4500kg, the shape will deflect less than 0.01mm.
3. Slide ways are HARDENED to HRC 50º to further increase durability and maintain positioning height over long use.
4. The special ANGLE -LOCK SYSTEM with compact design and high-grade iron of over FCD 60 grade for high rigidity automatically pulls the work-piece down to the accurate position of within 0.01mm under 4500kg.
5. Tubes are designed with different colors for quick repair.
6. Security design ensures the vise holds clamping force for 3 minutes, if the air supply is cut.
